DSH Brand hby step rod seal catalogue double

DSH Brand hby step rod seal catalogue double

Type
DSJ
Delivery Time
3-7 days
Quality
High-quality
Service
Standard product/Customized product
Brand
DSH
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Application Scope
hydraulic seal is available in a wide range of applications, including machine tools, boats and ships, autos, aerospace equipment, agricultural machinery, metallurgical machinery, petroleum machinery, chemical machinery, and construction machinery.While providing quality products, DSH Seals is dedicated to providing personalized solutions for customers according to their needs and actual situations.
  • DSH-Best Cylinder Rod Seals Dsj-bronze Filled Ptfe Hydraulic Rod Seal Step
Enterprise Strength
  • DSH Seals is committed to providing quality products and services for customers. We have a talents team with rich experience and mature technology. The team members focus on innovation and excellence.
  • DSH Seals takes strict monitoring and improvement in customer service. We can make sure that the services are timely and accurate to meet the needs of customers.
  • As a company with social responsibility, DSH Seals has always adhered to the enterprise spirit of 'concentration, dedication, and professionalism'. We pay great attention to the reputation, customers, and integrity during business development. We constantly innovate and pursue excellence, with the commitment of becoming a modern enterprise with a good reputation in the domestic market.
  • Established in 1999, DSH Seals becomes a famous Manufacturing Rubber & Plastics enterprise after years of development.
  • DSH Seals's hydraulic seal can be delivered to all regions of the country thanks to the comprehensive sales network.
Company Advantages
1. This ptfe rod seal has many virtues such as rod seal catalogue and so on. It is a product for superior heat and oil resistance properties
2. Concentrating on the quality check turns out to be effective to ensure its quality. It is resistant to virtually every known chemical and solvent
3. With the support from our experts, the product is in strict compliance with the industry quality standards. It features temperature cycling resistance (material degradation, heat ageing
4. Guangdong DSH Seals Technology Co., Ltd has set up an integrated sales network in domestic market. It exhibits improved wear performance and tear resistance
5. Guangdong DSH Seals Technology Co., Ltd's business has developed steadily over the long term. It has good resistance to UV rays


Step seals are generally composed of a rubber O-ring and a PTFE ring. The O-ring is a force-applying element that provides sufficient sealing force and compensates for PTFE rings. Suitable for hydraulic cylinder piston rod seal. Seal is a single-acting seal, divided into piston seals and piston rods. The seal has advantages of low friction, no creep, low starting force, high pressure resistance, and simple groove structure.


Advantages

  • Low friction resistance, no creeping phenomenon.

  • The dynamic and static sealing effects are quite good.

  • No viscous phenomenon.

  • Good performance when there is lubrication and no lubrication.

  • The groove structure is simple.

  • High pressure resistance and adaptability to working conditions.


◆◆ PTFE, Can be used with nitrile rubber / fluoro rubber o ring


Material descriptionPTFE filled Bronze, PTFE filled carbon fiber and MoS2, PTFE filled Graphite, PTFE filled PI, PTFE filled Ekonol, PU and so on.
Available ColorBlack, green, coffee, white, red, blue, gold and so on
Material StrengthHigh precision, excellent wear resistance, good self-lubricating performance, environmental protection.
temperature-45~+200℃
speed≤15m/s
pressure≤60MPa
MediumFlame retardant oil, water, hydraulic oil, gas
Applied deviceHydraulic equipment / standard cylinder / machine tool / injection machine / hydraulic machine, etc.


DSH-Professional Cylinder Rod Seals Packing Rod Seals Manufacture
DSH-Professional Cylinder Rod Seals Packing Rod Seals Manufacture-1
DSH-Professional Cylinder Rod Seals Packing Rod Seals Manufacture-2
DSH-Professional Cylinder Rod Seals Packing Rod Seals Manufacture-3
DSH-Professional Cylinder Rod Seals Packing Rod Seals Manufacture-4
DSH-Professional Cylinder Rod Seals Packing Rod Seals Manufacture-5
DSH-Professional Cylinder Rod Seals Packing Rod Seals Manufacture-6
DSH-Professional Cylinder Rod Seals Packing Rod Seals Manufacture-7
DSH-Professional Cylinder Rod Seals Packing Rod Seals Manufacture-8
DSH-Professional Cylinder Rod Seals Packing Rod Seals Manufacture-9
DSH-Professional Cylinder Rod Seals Packing Rod Seals Manufacture-10
DSH-Professional Cylinder Rod Seals Packing Rod Seals Manufacture-11
DSH-Professional Cylinder Rod Seals Packing Rod Seals Manufacture-12
DSH-Professional Cylinder Rod Seals Packing Rod Seals Manufacture-13
DSH-Professional Cylinder Rod Seals Packing Rod Seals Manufacture-14
DSH-Professional Cylinder Rod Seals Packing Rod Seals Manufacture-15
DSH-Professional Cylinder Rod Seals Packing Rod Seals Manufacture-16
DSH-Professional Cylinder Rod Seals Packing Rod Seals Manufacture-17
DSH-Professional Cylinder Rod Seals Packing Rod Seals Manufacture-18
DSH-Professional Cylinder Rod Seals Packing Rod Seals Manufacture-19
DSH-Professional Cylinder Rod Seals Packing Rod Seals Manufacture-20
DSH-Professional Cylinder Rod Seals Packing Rod Seals Manufacture-21
DSH-Professional Cylinder Rod Seals Packing Rod Seals Manufacture-22


◆◆ Slide Ring  for Rod - DSJ


DSH-Professional Cylinder Rod Seals Packing Rod Seals Manufacture-23

Technical Data

PressureTemperatureSliding speedMedium
Standard≤60 MPa-45 ... +200 ℃≤15 m/sMineral oil based hydraulic fluids,barely flammable hydraulic fluids, water,air and others.
Material

 0-ringSlide ring
StandardNBRPTFE-Bronze
Special (on request)FKMPTFE-carbon
Pressure160bar250bar400bar
Max Gap EE≤0.6mmE≤0.4mmE≤0.2mm
Diameter d=80mm
Order Code:  DSJ 80*95.1*6.3

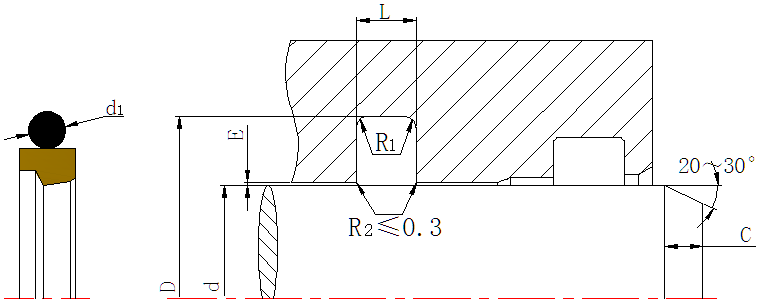

Installation Dimension table based on Metric Size(mm)
d  h9D H9L +0.2d1C≥R1≤
4~18d+4.92.21.820.4
8~25d+7.33.22.6520.4
19~150d+10.74.23.5530.8
38~250d+15.16.35.351.2
50~255d+20.58.177.51.6
250~700d+248.1781.6
650~1500d+27.39.58.68.52
1000~1500d+3813.8128.52
Order Numberd h9D H9L +0.2
Order Numberd h9D H9L +0.2
DSJ004048.92.2DSJ02802838.74.2
DSJ005059.92.2DSJ0300L3037.33.2
DSJ0060610.92.2DSJ03003040.74.2
DSJ0080L812.92.2DSJ0300H3045.16.3
DSJ0080815.33.2DSJ0320L3239.33.2
DSJ0100L1014.92.2DSJ03203242.74.2
DSJ01001017.33.2DSJ0350L3542.33.2
DSJ0120L1216.92.2DSJ03503545.74.2
DSJ01201219.33.2DSJ0360L3643.33.2
DSJ0140L1418.92.2DSJ03603646.74.2
DSJ01401421.33.2DSJ0360H3651.16.3
DSJ0150L1519.92.2DSJ0380L3848.74.2
DSJ01501522.33.2DSJ03803853.16.3
DSJ0160L1620.92.2DSJ0400L4050.74.2
DSJ01601623.33.2DSJ04004055.16.3
DSJ0160H1626.74.2DSJ0420L4252.74.2
DSJ0180L1822.92.2DSJ04204257.16.3
DSJ01801825.33.2DSJ0450L4555.74.2
DSJ0180H1828.74.2DSJ04504560.16.3
DSJ0200L2027.33.2DSJ0480L4858.74.2
DSJ02002030.74.2DSJ04804863.16.3
DSJ0220L2229.33.2DSJ0500L5060.74.2
DSJ02202232.74.2DSJ05005065.16.3
DSJ02402434.74.2DSJ0550L5565.74.2
DSJ0250L2532.33.2DSJ05505570.16.3
DSJ02502535.74.2DSJ0600L6070.74.2
DSJ0280L2835.33.2DSJ06006075.16.3
Order Numberd h9D H9L +0.2Order Numberd h9D H9L +0.2
DSJ0630L6373.74.2DSJ1250H125145.58.1
DSJ06306378.16.3DSJ1300L130140.74.2
DSJ06406479.16.3DSJ1300130145.16.3
DSJ0650L6575.74.2DSJ1300H130150.58.1
DSJ06506580.16.3DSJ1320132147.16.3
DSJ0700L7080.74.2DSJ1350L135145.74.2
DSJ07007085.16.3DSJ1350135150.16.3
DSJ0700H7090.58.1DSJ1350H135155.58.1
DSJ0750L7585.74.2DSJ1360136151.16.3
DSJ07507590.16.3DSJ1400L140150.74.2
DSJ0750H7595.58.1DSJ1400140155.16.3
DSJ0800L8090.74.2DSJ1400H140160.58.1
DSJ08008095.16.3DSJ1420142157.16.3
DSJ0800H80100.58.1DSJ1450145160.16.3
DSJ0850L8595.74.2DSJ1450H145165.58.1
DSJ085085100.16.3DSJ1500L150160.74.2
DSJ0850H85105.58.1DSJ1500150165.16.3
DSJ0900L90100.74.2DSJ1500H150170.58.1
DSJ090090105.16.3DSJ1550155170.16.3
DSJ0900H90110.58.1DSJ1600160175.16.3
DSJ9500L95105.74.2DSJ1600H160180.58.1
DSJ095095110.16.3DSJ1650L165175.74.2
DSJ0950H95115.58.1DSJ1650165180.16.3
DSJ1000L100110.74.2DSJ1700170185.16.3
DSJ1000100115.16.3DSJ1700H170190.58.1
DSJ1000H100120.58.1DSJ1750175190.16.3
DSJ1050L105115.74.2DSJ1800180195.16.3
DSJ1050105120.16.3DSJ1800H180200.58.1
DSJ1050H105125.58.1DSJ1850185200.16.3
DSJ1100L110120.74.2DSJ1900190205.16.3
DSJ1100110125.16.3DSJ1900H190210.58.1
DSJ1100H110130.58.1DSJ1950195210.16.3
DSJ1120112127.16.3DSJ1950H195215.58.1
DSJ1150L115125.74.2DSJ2000L200215.16.3
DSJ1150115130.16.3DSJ2000200220.58.1
DSJ1150H115135.58.1DSJ2050205225.58.1
DSJ1200L120130.74.2DSJ2100L210225.16.3
DSJ1200120135.16.3DSJ2100210230.58.1
DSJ1200H120140.58.1DSJ2150215235.58.1
DSJ1250125140.16.3DSJ2200L220235.16.3
Order Numberd h9D H9L +0.2Order Numberd h9D H9L +0.2
DSJ2200220240.58.1DSJ48004805048.1
DSJ2250225245.58.1DSJ49004905148.1
DSJ2300L230245.16.3DSJ49804985228.1
DSJ2300230250.58.1DSJ50005005248.1
DSJ2350L235250.16.3DSJ51005105348.1
DSJ2350235255.58.1DSJ52005205448.1
DSJ2360236256.58.1DSJ53005305548.1
DSJ2400240260.58.1DSJ54005405648.1
DSJ2500250270.58.1DSJ55005505748.1
DSJ25602562808.1DSJ56005605848.1
DSJ26002602848.1DSJ5600L560580.58.1
DSJ2600L260280.58.1DSJ57005705948.1
DSJ26502652898.1DSJ58005806048.1
DSJ27002702948.1DSJ60006006248.1
DSJ28002803048.1DSJ61006106348.1
DSJ28502853098.1DSJ62006206448.1
DSJ29002903148.1DSJ63006306548.1
DSJ30003003248.1DSJ64006406648.1
DSJ3000L300320.58.1DSJ6400H640667.39.5
DSJ31003103348.1DSJ6500L6506748.1
DSJ31503153398.1DSJ6500650677.39.5
DSJ32003203448.1DSJ6550655682.39.5
DSJ33003303548.1DSJ6560656683.39.5
DSJ34003403648.1DSJ6600660687.39.5
DSJ35003503748.1DSJ6650665692.39.5
DSJ35503553798.1DSJ6700670697.39.5
DSJ36003603848.1DSJ6750675702.39.5
DSJ37003703948.1DSJ6800680707.39.5
DSJ38003804048.1DSJ6850685712.39.5
DSJ39003904148.1DSJ6860686713.39.5
DSJ40004004248.1DSJ6900690717.39.5
DSJ41004104348.1DSJ6950695722.39.5
DSJ42004204448.1DSJ7000700727.39.5
DSJ43004304548.1DSJ7050705732.39.5
DSJ44004404648.1DSJ7100710737.39.5
DSJ45004504748.1DSJ7150715742.39.5
DSJ4500H450477.39.5DSJ7200720747.39.5
DSJ46004604848.1DSJ7250725752.39.5
DSJ46504654898.1DSJ7300730757.39.5
DSJ47004704948.1DSJ7350735762.39.5
Order Numberd h9D H9L +0.2Order Numberd h9D H9L +0.2
DSJ7400740767.39.5DSJ8500850877.39.5
DSJ7450745772.39.5DSJ8700870897.39.5
DSJ7500750777.39.5DSJ8800880907.39.5
DSJ7550755782.39.5DSJ8850885912.39.5
DSJ7600760787.39.5DSJ100001000103813.8
DSJ7650765792.39.5DSJ103501035107313.8
DSJ7700770797.39.5DSJ104001040107813.8
DSJ7750775802.39.5DSJ10500L10501077.39.5
DSJ7800780807.39.5DSJ105001050108813.8
DSJ7820782809.39.5DSJ108001080111813.8
DSJ7850785812.39.5DSJ110001100113813.8
DSJ7900790817.39.5DSJ11200L11201147.39.5
DSJ7950795822.39.5DSJ112001120115813.8
DSJ8000800827.39.5DSJ12000L12001227.39.5
DSJ8050805832.39.5DSJ120001200123813.8
DSJ8100810837.39.5DSJ13300L13301357.39.5
DSJ8200820847.39.5DSJ133001330136813.8
DSJ8300830857.39.5
